Cut any image into a mortise-and-tenon jigsaw of any grid size, and render every piece as pseudo-3D with pure CSS — no canvas, no WebGL, the pieces stay real DOM elements.

English | 简体中文

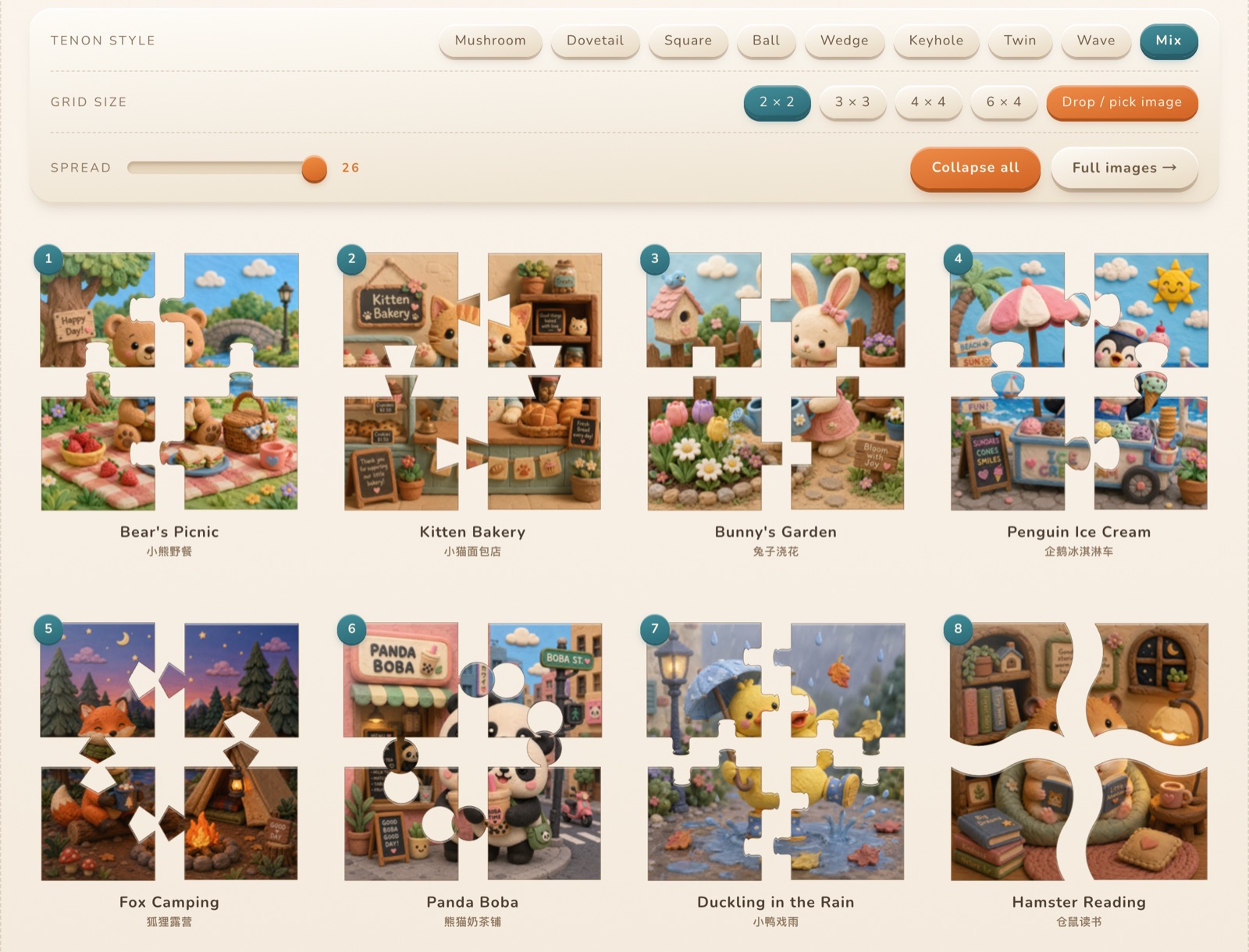

The demo in "mix" mode — every image cut with a different tenon style. Drag the spread slider, switch between eight tenon shapes and grid sizes, drop your own image onto the page to cut it instantly, then click any tile and move the mouse to tilt it in 3D.

• Interlocking by construction. Adjacent pieces share the exact same cut curve — one traverses it forward (tenon), the other backward (mortise) — from the very same floats. No sub-pixel seams, no overlaps, proven by an area-conservation test suite.
• Any grid size. 2×2, 3×3, 6×4, a single piece — the tenon direction of every internal edge is derived deterministically from one seed.
• Eight tenon styles, freely scalable. Mushroom, dovetail, square, ball, wedge, keyhole, twin and wave — plus a tenonScale knob from subtle to exaggerated. Adding one more style is a single array of normalized coordinates.
• Pure-CSS pseudo-3D. clip-path carves the shape, chained drop-shadow extrudes the side walls and drop shadow. Pieces remain hoverable, focusable, animatable DOM nodes.
• Any size, any aspect ratio. Landscape, portrait, even extreme strips — tenons never get stretched. Display size adapts to the container.
• Lazy rendering. Opt into lazy and pieces render only once they scroll near the viewport, so a page full of puzzles stays smooth.
• Alpha-aware. Lighting and seam strokes are masked by the image's own alpha, so a transparent PNG doesn't get a background color smeared onto it.
• React and Vue renderers. Same props, same class names, same stylesheet. Or skip both and drive the algorithm yourself — it's framework-agnostic.
• Tiny and dependency-free. ~25 kB packed; the algorithm entry has zero dependencies and never touches the DOM.

npm i mortise-puzzle

The renderers' frameworks are optional peer dependencies — install only what you use: react >= 18 for mortise-puzzle/react, vue >= 3.3 for mortise-puzzle/vue. The algorithm entry needs neither.

import { PuzzleBoard } from 'mortise-puzzle/react';
import 'mortise-puzzle/styles.css';

export default function Example() {
  return <PuzzleBoard src="/photo.png" cols={3} rows={3} seed={5} cut="dovetail" spread={12} />;
}

The component pulls in no animation library. To add a 3D viewing angle, wrap it in your own rotating container — give the parent a perspective and that layer transform-style: preserve-3d. The demo does exactly this with motion:

<div style={{ perspective: 1100 }}>
  <motion.div style={{ rotateX, rotateY, transformStyle: 'preserve-3d' }}>
    <PuzzleBoard src="/photo.png" fit="exact" />
  </motion.div>
</div>

To spread the pieces on hover, no state needed:

.card:hover .mp-slot { --mp-spread-hover: 13px; }

Spreading makes the pieces drift outside the container — fine on its own, but it will cover whatever sits below. To keep the puzzle inside its box, pad the container in proportion to spread; the board scales down to compensate, so the puzzle stays the same overall size and the pieces separate inward:

import { PuzzleBoard, PUZZLE_BASE } from 'mortise-puzzle/react';

<PuzzleBoard src="/photo.png" spread={spread} style={{ padding: `${(spread / PUZZLE_BASE) * 100}%` }} />;

<script setup lang="ts">
import { PuzzleBoard } from 'mortise-puzzle/vue';
import 'mortise-puzzle/styles.css';
</script>

<template>
  <PuzzleBoard src="/photo.png" :cols="3" :rows="3" :seed="5" cut="dovetail" :spread="12" />
</template>

Same props as the React version, same class names, same stylesheet. The component is written with a render function rather than an SFC, so you don't need any extra build plugin — importing it from a plain .ts file works too:

import { createApp, h } from 'vue';
import { PuzzleBoard } from 'mortise-puzzle/vue';
import 'mortise-puzzle/styles.css';

createApp({
  render: () => h(PuzzleBoard, { src: '/photo.png', cols: 3, rows: 3, cut: 'keyhole' }),
}).mount('#app');

For a 3D viewing angle, wrap it the same way — a parent with perspective, and a layer you rotate:

<script setup lang="ts">
import { ref } from 'vue';
import { PuzzleBoard } from 'mortise-puzzle/vue';

const rx = ref(0);
const ry = ref(0);
function tilt(e: PointerEvent) {
  const r = (e.currentTarget as HTMLElement).getBoundingClientRect();
  ry.value = ((e.clientX - r.left) / r.width - 0.5) * 36;
  rx.value = -((e.clientY - r.top) / r.height - 0.5) * 26;
}
</script>

<template>
  <div style="perspective: 1100px" @pointermove="tilt" @pointerleave="rx = 0; ry = 0">
    <div
      :style="{
        transformStyle: 'preserve-3d',
        transform: `rotateX(${rx}deg) rotateY(${ry}deg)`,
        transition: 'transform .2s',
      }"
    >
      <PuzzleBoard src="/photo.png" fit="exact" :spread="10" :lift="16" />
    </div>
  </div>
</template>

import { makePuzzle } from 'mortise-puzzle';

const { pieces } = makePuzzle(800, 600, { cols: 4, rows: 3, seed: 5, style: 'dovetail' });

pieces[0].d;          // closed SVG path — feed it to clip-path: path(...) or <path d>
pieces[0].key;        // 'r0c0' — stable id, usable as a React key
pieces[0].row;        // 0
pieces[0].col;        // 0
pieces[0].ox;         // -1..1 — outward direction, handy for explode animations

makePuzzle(width: number, height?: number, options?: {
  cols?: number;        // default 2
  rows?: number;        // default 2
  seed?: number;        // default 0
  style?: CutStyleId;   // default 'mushroom'
  tenonScale?: number;  // default 1
}): Puzzle

tenonScale scales tenons in both axes at once, so the shape stays proportional instead of being stretched tall and narrow. It's clamped to 0.2 … 2, and the upper bound tightens automatically per style: the wider a style's outline sits along the edge, the less room it has to grow before its control points would be pushed past the ends of the edge — and those ends often lie right on the image border. twin (whose two tenons span from t = 0.2) therefore tops out around 1.46, while mushroom reaches the full 2. The value that actually took effect is reported back as puzzle.tenonScale.

height defaults to width. Zero dependencies and no DOM access, so it also works in Node — for generating SVG files or slicing images server-side.

A cut line is described in normalized edge coordinates: t runs 0→1 along the edge, u is the normal (positive = the side the tenon sticks out). That makes the description independent of where the line sits, how long it is, and which way it faces — so a new style is just a command list, and the reverse-traversal interlocking logic keeps working untouched:

dovetail: {
  zh: '燕尾榫',
  en: 'Dovetail',
  hint: "The woodworker's tension joint",
  edge: [['L', 0.42, 0], ['L', 0.355, 0.19], ['L', 0.645, 0.19], ['L', 0.58, 0], ['L', 1, 0]],
}

Requirements: start from the implicit (0, 0), end at (1, 0), don't self-intersect. 'L' is a line, 'C' a cubic bézier (c1x c1y c2x c2y x y).

Everything visual is a CSS variable — override any of them (defaults shown):

.mp-slot {
  --mp-fill: transparent;   /* piece backdrop, fills the image's transparent area */
  --mp-zoom: 100%;          /* image scale; e.g. 122% crops transparent padding away */
  --mp-wall-1: #CFAF89;     /* side wall, closest to the top face */
  --mp-wall-2: #A17952;
  --mp-wall-3: #7E5C3A;     /* side wall, deepest */
  --mp-shadow: 0 6px 9px rgba(74, 48, 22, .34);
  --mp-seam-hi: rgba(255, 252, 243, .5);  /* lit inner wall of the cut */
  --mp-seam-lo: rgba(86, 54, 24, .55);    /* dark outline of the cut */
  --mp-gloss: .26;          /* top-face key light */
  --mp-ambient: .22;        /* bottom ambient occlusion */
  --mp-perspective: 1100px;
  --mp-duration: .52s;
}

Online: https://yourlin.github.io/mortise-puzzle/

The demo cuts a set of felted miniature scenes, AI-generated purely as sample material and not shipped with the npm package. Each one uses a different tenon direction (seed); "混搭" (mix) gives each a different tenon style so you can see all eight at once. Dropping your own image onto the page adds it to the front of the grid — it never leaves your browser.

The UI is bilingual (English by default) — the toggle sits in the top-right corner.

Deep links: ?lang=zh, ?cut=dovetail (or mix), ?grid=3x3, ?tenon=1.4, ?open=8, ?spread=16.

Run it locally:

git clone https://github.com/yourlin/mortise-puzzle.git
cd mortise-puzzle
npm install
npm run dev

demo/ imports the library by package name (via a Vite alias), so it doubles as a worked example of consuming the package.

Pushing to main deploys the demo to GitHub Pages via Actions.

Why it always interlocks. Internal cut edges are organized on a vertex grid: vEdge[r][c] runs top-to-bottom, hEdge[r][c] left-to-right. Every internal edge is shared by exactly two pieces — one walks it forward and gets a tenon, the other walks the identical curve backward and gets the matching mortise. Same floats, so the geometry coincides exactly, at any grid size. npm run test validates every style against five aspect ratios, eight grid sizes and many seeds: paths closed, nothing outside the image bounds, the piece areas summing to exactly width × height, and the shared curve overlapping point-by-point.

Where the thickness comes from. After clip-path: path() carves the tenon outline, chained drop-shadow filters extrude that alpha shape downward layer by layer — each shadow applies to the previous filter's result, so the offsets stack into a solid side wall, with the last one as the cast shadow. The cut itself is the same path stroked twice: a lit inner wall plus a dark outline.

Four traps worth knowing (all flagged in the source comments):

1. Tenon height must scale by one global reference (the shorter side of a cell), while only the along-edge axis scales by the edge's own length. Otherwise a non-square image gives the vertical and horizontal cut lines different lengths, and the tenons come out different sizes, squashed into ellipses.
2. The lighting layer and the seam strokes need an mask-image of the image's own alpha. Without it they paint over the transparent regions and look exactly like a background color that appeared out of nowhere.
3. Measure the container in useLayoutEffect, not useEffect — the latter runs after paint, so the first frame shows the unscaled base size and everything visibly snaps into place on load.
4. Image URLs must be resolved to absolute before going into a CSS custom property. Chrome resolves a relative url() inside a custom property against the stylesheet that references it — after bundling that's /assets/, so img/a.png 404s and the pieces vanish entirely. It only reproduces in a production build, since dev servers inject CSS inline.

MIT © MasterLin
