A lightweight, declarative, and vector-based music notation, tablature, interactive fretboard, and chord diagram rendering suite for Flutter.

Built entirely using native Canvas drawing (CustomPainter), eliminating any reliance on heavy SMuFL font files, ensuring instant load times, responsive scaling, and native dark/light theme adaptation on all platforms (iOS, Android, macOS, Web, Windows).

• Sheet Music (SheetMusicView): Renders treble clef staves, notes with stems, accidentals, and ledger lines. Supports automatic line-wrapping (responsiveness).

• Tablature (TablatureView): Renders 6-string guitar tablatures with fret numbers perfectly centered and masked over the lines. Supports automatic wrapping.

• Guitar Fretboard (CustomFretboard): Renders a realistic rosewood fretboard with scale markers, intervals, O(1) tap coordinates mapping, click callbacks (onNoteTapped), and customizable styles via FretboardStyle.

• Chord Diagrams (ChordDiagramView): Renders vertical chord charts with barre indicators, finger placements, and open (○) or muted (✕) string markers (explicit or inferred from fret: 0).

Add the package dependency to your pubspec.yaml file:

dependencies:
  flutter:
    sdk: flutter
  templum_music:
    path: /path/to/templum_music_lib

Import the library in your Dart code:

import 'package:templum_music/templum_music.dart';

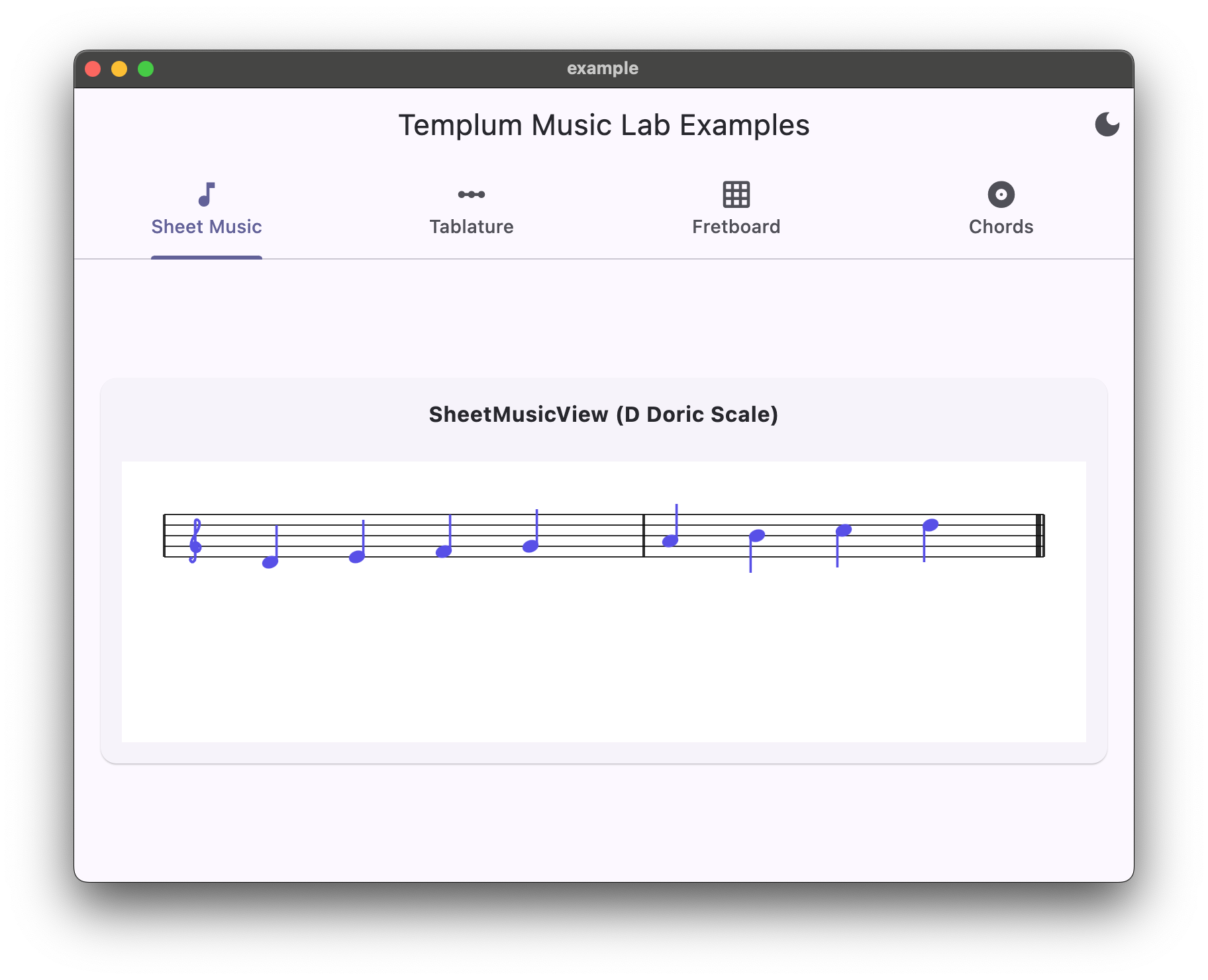

Renders a sequence of musical notes on a traditional 5-line staff with responsive line-wrapping.

SheetMusicView(
  measures: [
    Measure(
      number: 1,
      notes: [
        Note(pitch: Pitch.c4, duration: NoteDuration.quarter, startBeat: 0.0), // Middle C
        Note(pitch: Pitch.e4, duration: NoteDuration.quarter, startBeat: 1.0), // E
        Note(pitch: Pitch.g4, duration: NoteDuration.quarter, startBeat: 2.0), // G
        Note(pitch: Pitch.c5, duration: NoteDuration.quarter, startBeat: 3.0), // C Octave
      ],
    ),
  ],
  lineColor: Colors.black87,
  noteColor: Colors.indigo,
  staffSpaceSize: 8.0, // Spacing between staff lines
)

Preview:

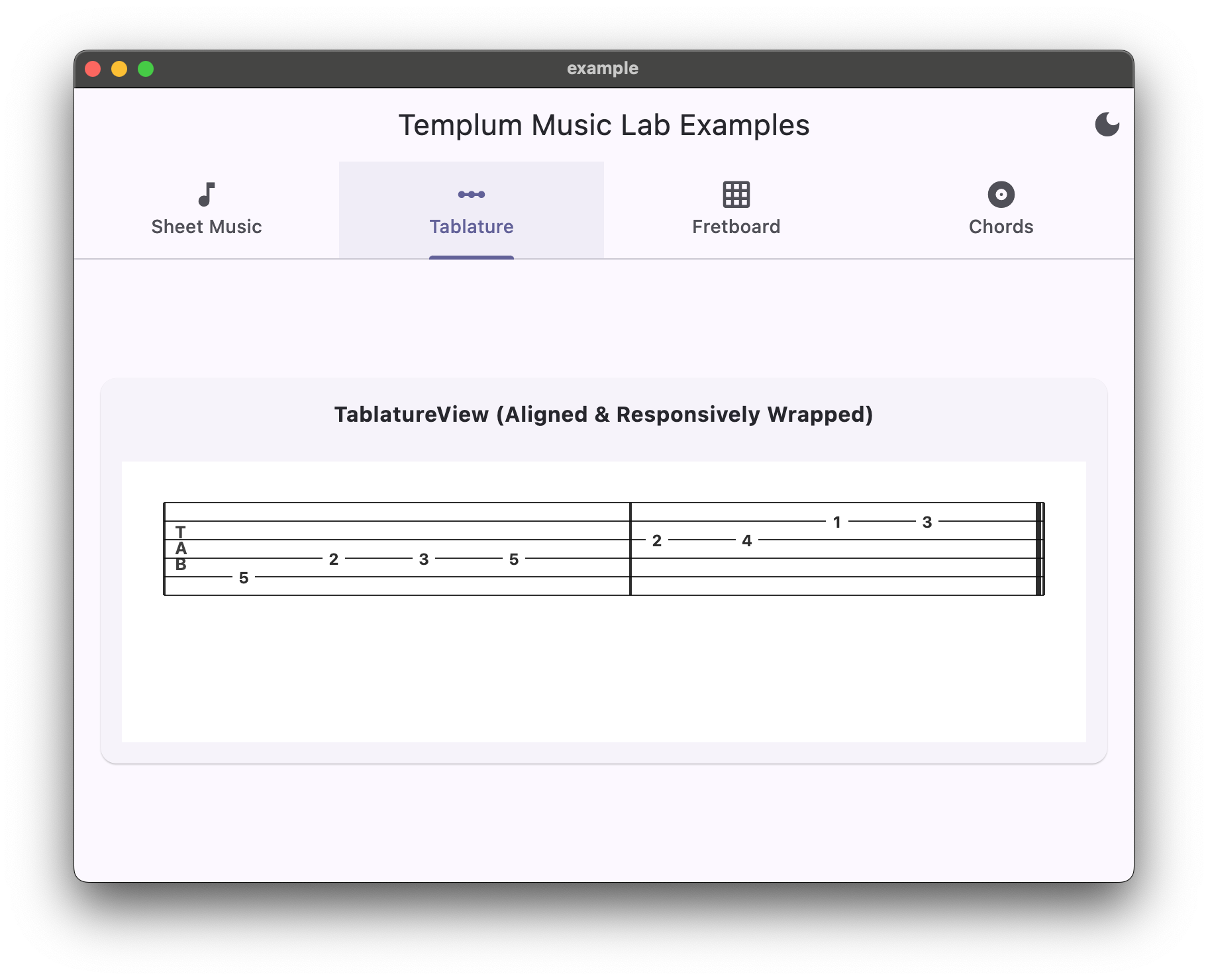

Renders fret numbers with an opaque circular background mask under the strings to prevent line/number intersections.

TablatureView(
  measures: [
    Measure(
      number: 1,
      notes: [
        Note(string: 6, fret: 0, duration: NoteDuration.quarter, startBeat: 0.0), // Low E Open
        Note(string: 6, fret: 3, duration: NoteDuration.quarter, startBeat: 1.0), // G (String 6 Fret 3)
        Note(pitch: Pitch.c4, string: 5, fret: 3, duration: NoteDuration.quarter, startBeat: 2.0), // C (String 5 Fret 3)
      ],
    ),
  ],
  lineColor: Colors.black87,
  numberColor: Colors.black87,
  backgroundColor: Colors.white,
  stringSpacing: 14.0,
)

Preview:

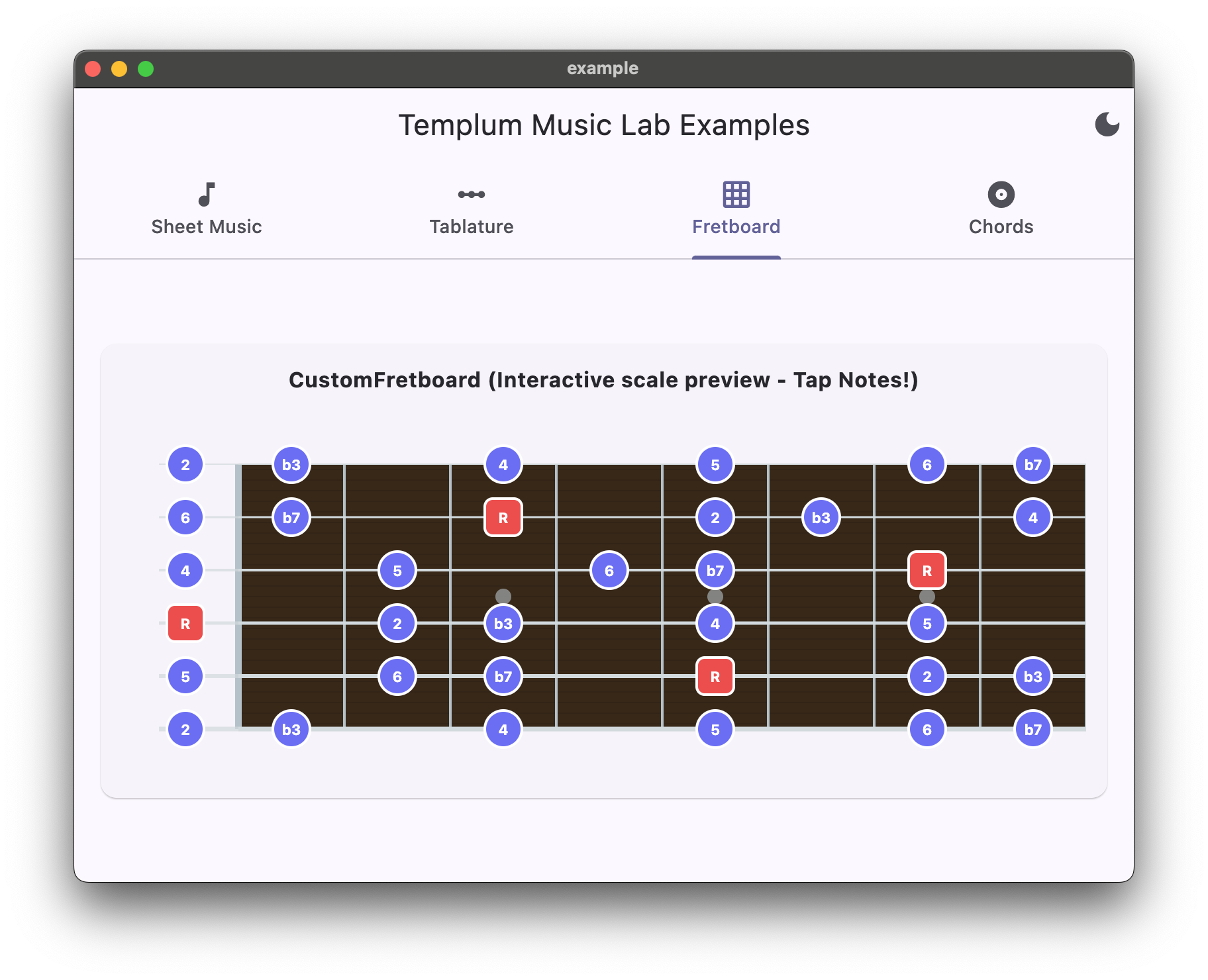

An interactive fretboard widget. Captures click gestures, resolves the note automatically, and highlights note degrees/tonics.

CustomFretboard(
  tuning: const ['E', 'A', 'D', 'G', 'B', 'E'],
  startFret: 0,
  endFret: 12,
  highlightedNotes: const ['D', 'F#', 'A', 'C'], // Notes to display (D7 Arpeggio)
  rootNote: 'D', // Tonic note displays as a red rounded square
  noteDegrees: const {
    'D': 'R',
    'F#': '3',
    'A': '5',
    'C': 'b7',
  },
  showDegrees: true, // Display harmonic intervals instead of note letters
  showOpenStrings: true,
  onNoteTapped: (note, string, fret) {
    print('Tapped note: $note at String $string, Fret $fret');
    // Trigger audio playback or state updates here
  },
  // Custom visual styling configurations
  style: const FretboardStyle(
    woodColor: Color(0xFF2E1C0C),      // Dark brown rosewood background
    fretWireColor: Color(0xFFB0BEC5),  // Silver frets
    markerColor: Colors.indigo,        // Scale notes marker fill
    rootMarkerColor: Colors.red,       // Root/tonic marker fill
    glowColor: Color(0xFF10B981),      // Active glow ring on click
  ),
)

Preview:

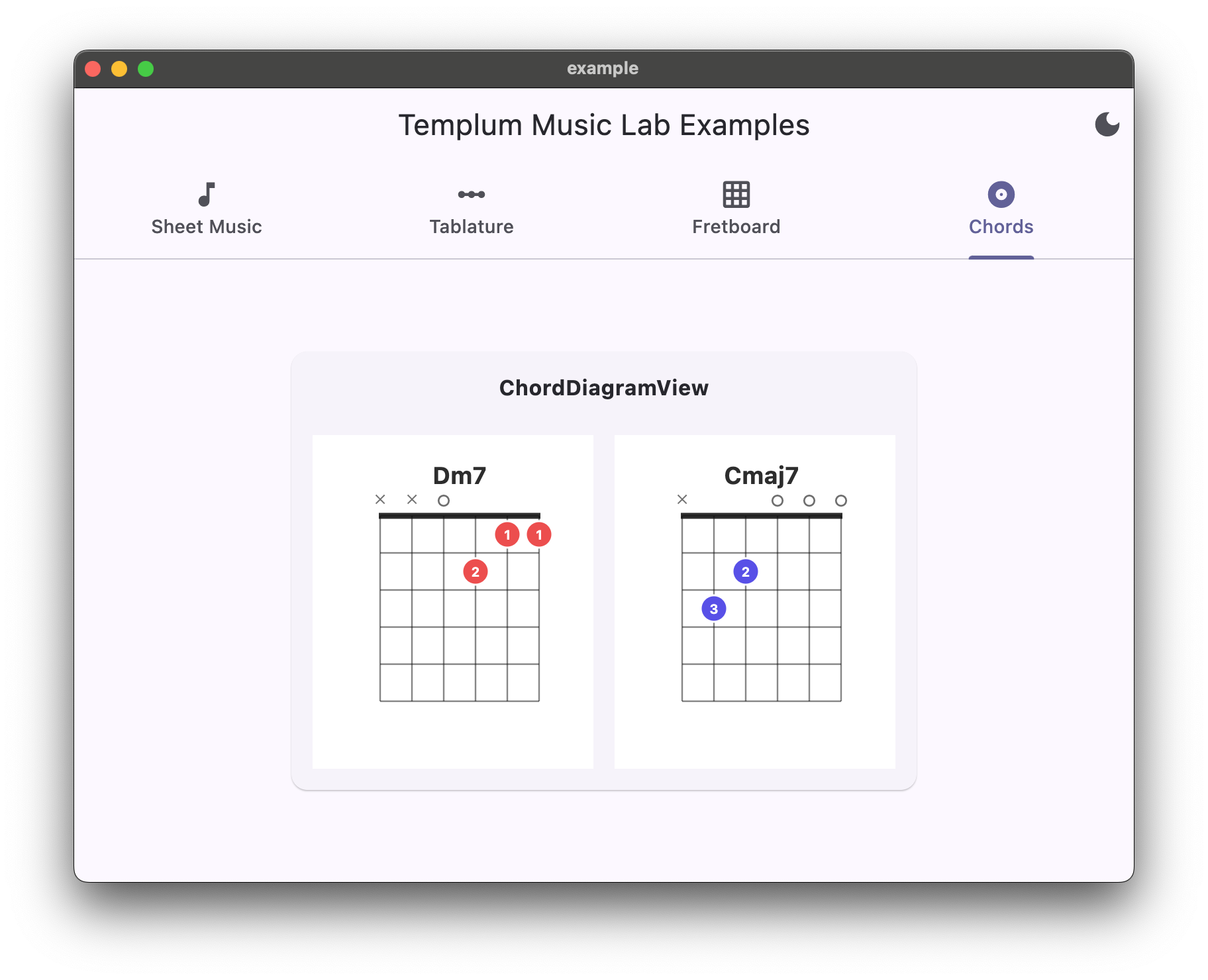

Renders standard vertical guitar chord charts with support for multiple configurations.

ChordDefinition supports open strings in two equivalent ways:

• Set ChordStringMarker.open in stringMarkers
• Or provide ChordPlacement(..., fret: 0) and let effectiveStringMarkers infer the open marker

ChordDiagramView(
  chord: ChordDefinition(
    name: 'Bm7',
    startFret: 2,
    placements: [
      ChordPlacement(string: 5, fret: 2, finger: 1), // Barre begins (finger 1)
      ChordPlacement(string: 4, fret: 4, finger: 3), // Finger 3 on fret 4
      ChordPlacement(string: 3, fret: 2, finger: 1),
      ChordPlacement(string: 2, fret: 3, finger: 2), // Finger 2 on fret 3
      ChordPlacement(string: 1, fret: 2, finger: 1),
    ],
    stringMarkers: [
      ChordStringMarker.muted, // Muted String 6 (X)
      ChordStringMarker.none,
      ChordStringMarker.none,
      ChordStringMarker.none,
      ChordStringMarker.none,
      ChordStringMarker.none,
    ],
  ),
  lineColor: Colors.black87,
  textColor: Colors.black87,
  dotColor: Colors.indigo,
)

Preview:

All components use a shared, clean set of domain models located in src/models/musical_models.dart:

• Pitch: Scientific pitch notation definition (e.g., Pitch.c4 = Middle C, Pitch.a4 = A 440Hz).
• NoteDuration: Rhythmic duration fraction mappings (e.g., NoteDuration.whole = 4 beats, NoteDuration.quarter = 1 beat).
• Note: Represents a note event (pitch, duration, start beat, string/fret).
• Measure: Groups notes together inside a numbered bar.
• ChordDefinition: Contains diagram placements and string markers, with effectiveStringMarkers resolving inferred open strings.

This project is licensed under the Apache License 2.0.

Copyright (c) 2026 Leonardo Pinho.

You are free to use, copy, modify, distribute and include this library in personal, educational, open source or commercial projects, provided that the original copyright notice and license are preserved.

Commercial use is allowed under this license. However, this license does not grant rights to use the project author's name, brand, identity or trademarks to endorse derivative products without permission.

See the LICENSE file for details.

When using this library, please keep the original copyright and license notice:

    Templum Music Tools
    Copyright (c) 2026 Leonardo Pinho
    Licensed under the Apache License, Version 2.0

This software is provided as-is, without warranties or guarantees of any kind.

Created by Leonardo Pinho.
