Versatile log parser


Keywords
log, parsing
License
Other
Install
pip install yahi==0.2.9

Documentation

Versatile log parser

Synopsis

Given a regexp for a log, enables to quicly create aggregation statisctics by writing few code and generates a all in one web page with all vizualisations and data (that requires javascript to work and has some dependencies).

The library comes with a script that aggregates various data from common log format (apache, nginx) : speed_shoot.

And a script to generate the all in one view yahi_all_in_one_maker.

The demo being there

Installation

    pip install yahi

Quickstart

First you need a geoIP database in legacy format::

    mkdir ~/.yahi
    wget -O- https://mailfud.org/geoip-legacy/GeoIP.dat.gz | \
        zcat > ~/.yahi/GeoIP.dat
    wget -O- https://mailfud.org/geoip-legacy/GeoIPv6.dat.gz | \
        zcat > ~/.yahi/GeoIPv6.dat

And thanks to mailfud for keeping these legacy databases.

Simplest usage is:

    speed_shoot  /var/www/apache/access*log* > data.js

It reads gzipped file format automatically.

And then:

    yahi_all_in_one_maker data.js

To create a all in one HTML page with all JS/CSS/data included that has a multi route view. It includes various external libraries to work : D3js (charting), jquery, google js api (geo chart).

Screenshots

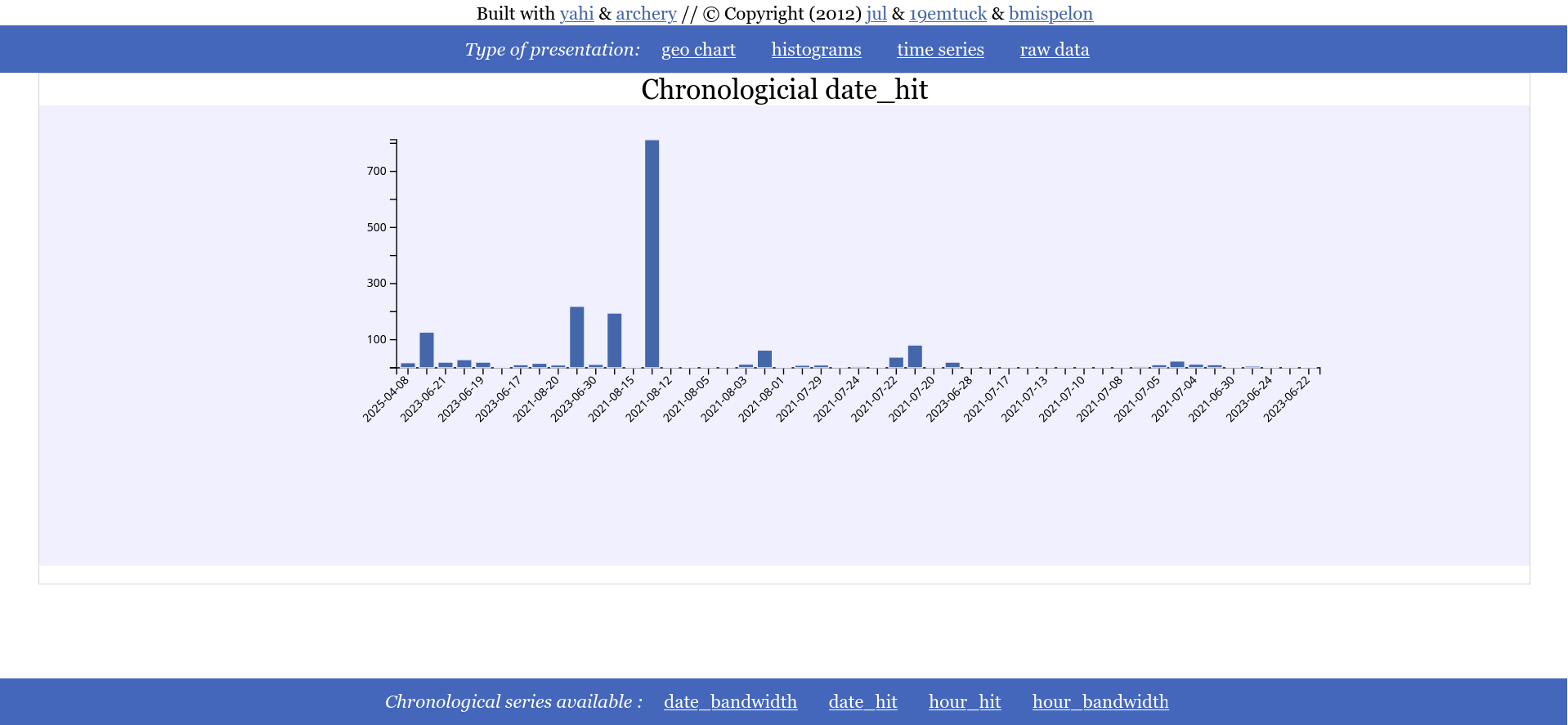

Time serie

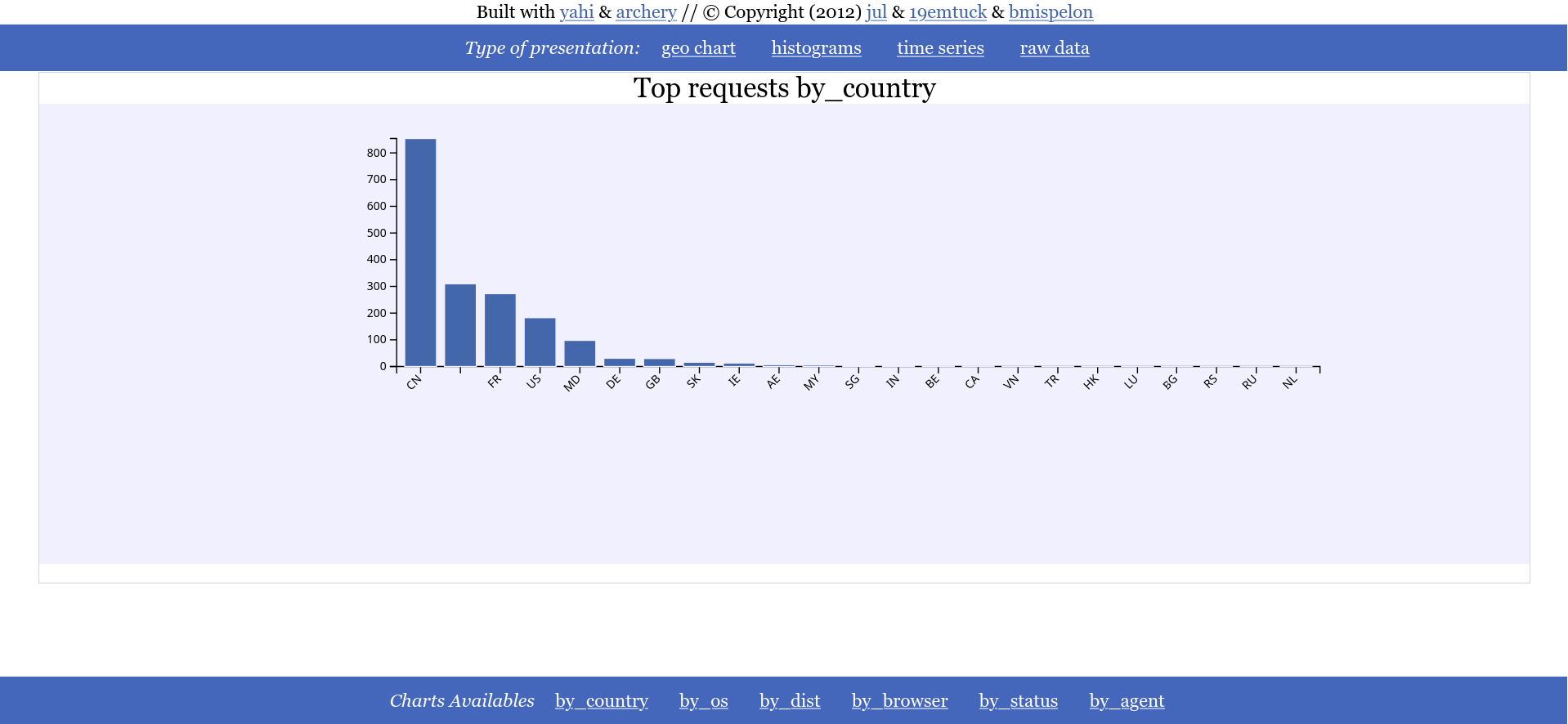

Histograms

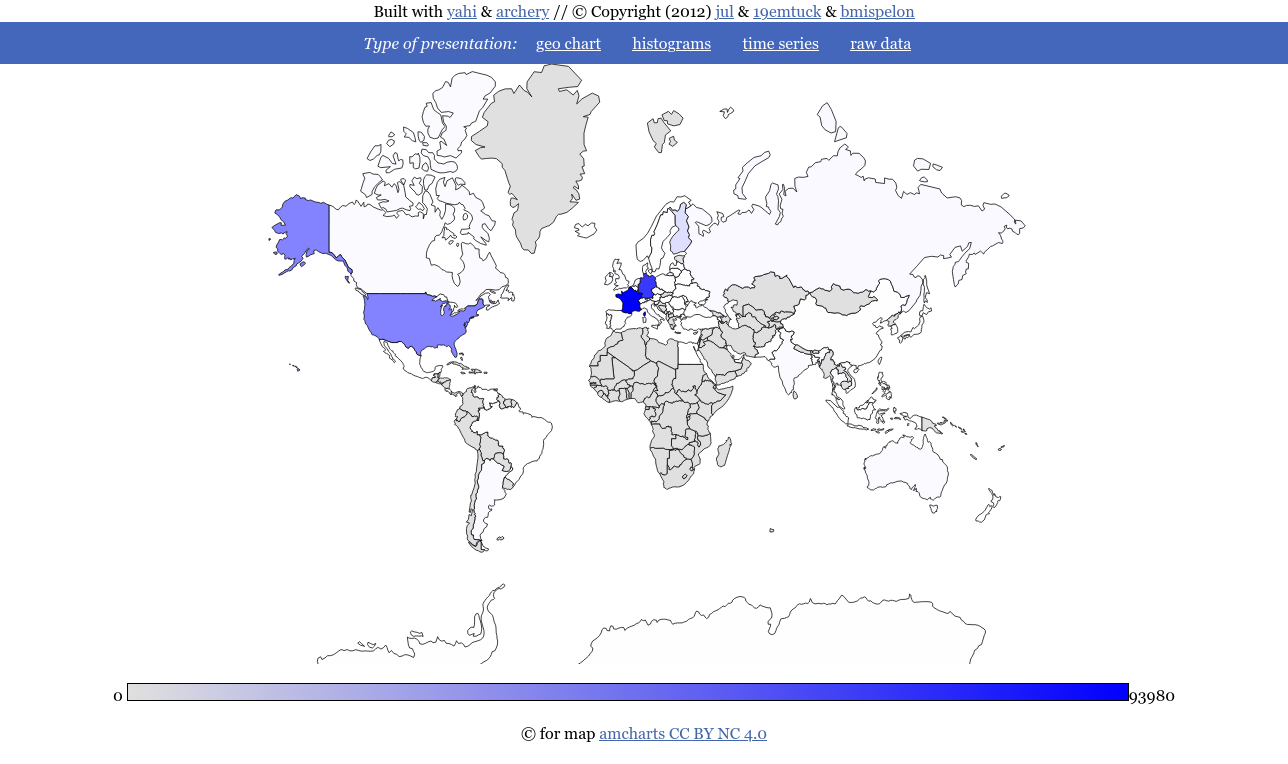

Geographic map

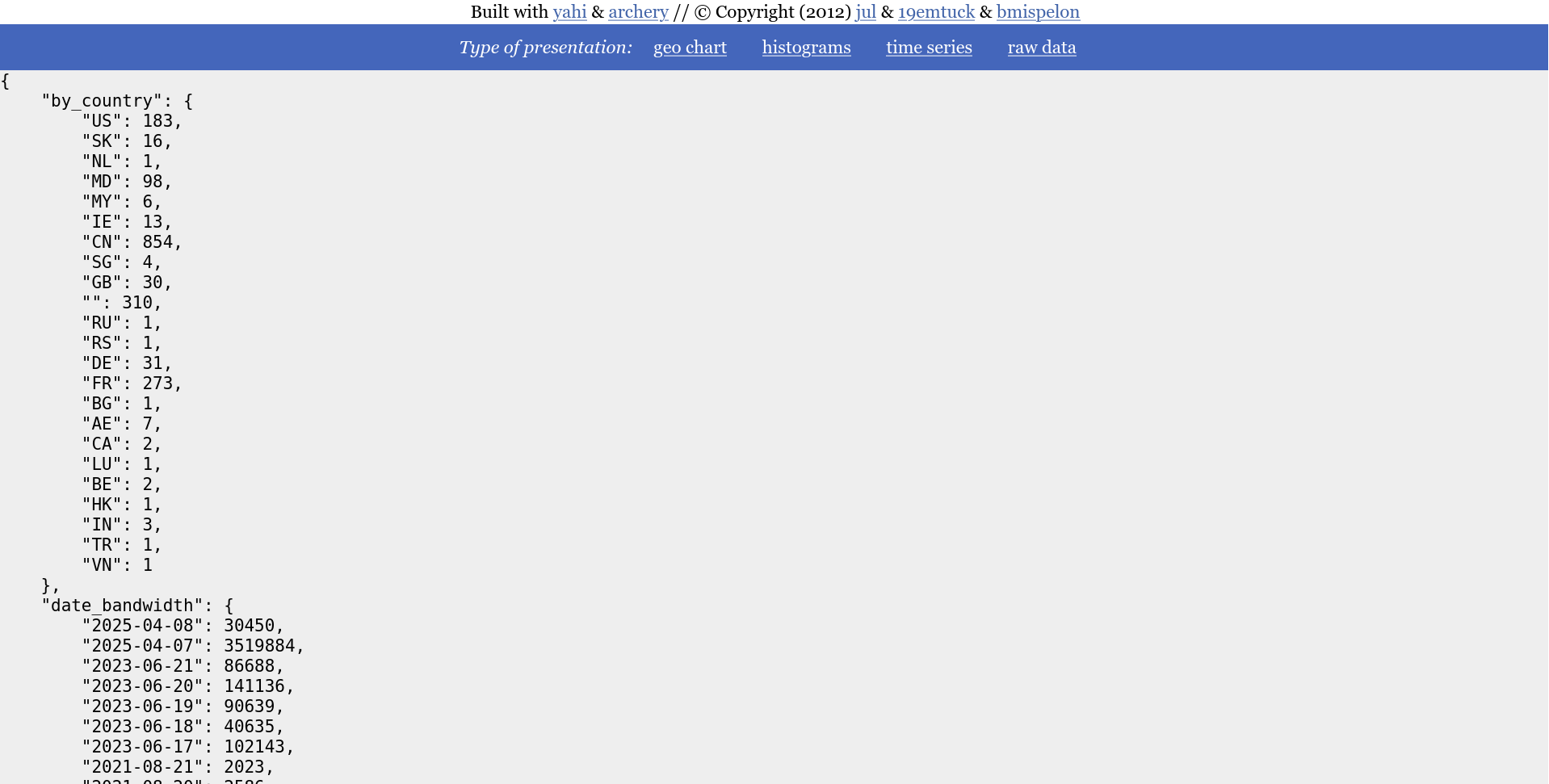

Raw data

Use as a script

speed shoot is in fact a template of how to use yahi as a module::

    #!/usr/bin/env python
    from archery import mdict
    from yahi import notch, shoot
    from datetime import datetime


    context=notch()

    date_formater= lambda dt :"%s-%s-%s" % ( dt.year, dt.month, dt.day)
    context.output(
        shoot(
            context,
            lambda data : mdict({
                'by_country': mdict({data['_country']: 1}),
                'date_hit': mdict({date_formater(data['_datetime']): 1 }),
                'date_bandwidth': mdict({date_formater(data['_datetime']): int(data["bytes"]) }),
                'hour_hit': mdict({data['_datetime'].hour: 1 }),
                'hour_bandwidth': mdict({data['_datetime'].hour: int(data["bytes"]) }),
                'by_os': mdict({data['_platform_name']: 1 }),
                'by_dist': mdict({data['_dist_name']: 1 }),
                'by_browser': mdict({data['_browser_name']: 1 }),
                'by_bandwidth_by_browser': mdict({data['_browser_name']: int(data["bytes"]) }),
                'by_ip': mdict({data['ip']: 1 }),
                'by_bandwidth_by_ip': mdict({data['ip']: int(data["bytes"]) }),
                'by_status': mdict({data['status']: 1 }),
                'by_url': mdict({data['uri']: 1}),
                'by_agent': mdict({data['agent']: 1}),
                'by_referer': mdict({data['referer']: 1}),
                'ip_by_url': mdict({data['uri']: mdict( {data['ip']: 1 })}),
                'bytes_by_ip': mdict({data['ip']: int(data['bytes'])}),
                'date_dayofweek_hit' : mdict({data['_datetime'].weekday(): 1 }),
                'weekday_browser' : mdict({data['_datetime'].weekday():
                    mdict({data["_browser_name"] :1 })}),
                'total_line' : 1,
            }),
        ),
    )

Naming

Archery is a pun on trait.

Yahi is a remembrance of a native american tribes that was versed in archery so that somewhere on the net we remember the genocides committed in the name of civilisation.

Yahi is thus a concrete application of archery for aggregation based on 2 functions :

  • notch to prepare your log aggregations
  • shoot to actually aggregate

Let's have a thought for the native americans that are still second ranks citizens in their own lands.

Changelog

0.2.9

  • update README on pypi (et on github)

0.2.8

  • removal of useless/duplicate stats in speed_shoot
  • enhancing faq thanks to @armandoF

0.2.7

  • now fully self in one file all dependencies are now in the file

0.2.5

  • bug when there is no undected geo localized IP in template

0.2.4

  • removing google JS api because it is heavy as shit and google is evil #22

0.2.3

  • fix : missing dates

0.2.2

  • fix #21 html injections through ref and uri

0.2.0

  • adds a loader in the all in one web page for when JS is hogging parsing the JSON
  • -g options now applies to the DIRECTORY where both GeoIP.dat and GeoIPv6.dat are

0.1.22

  • fix #18 wrong date formatting resulting in bad date ordeer
  • fix #19 create ~/.yahi on startup if not exists
  • fixing the template issue the nice way

0.1.21

  • fix #16 no templates in the package
  • fix #17 crashing of the HTML when JSON embedded is too big

0.1.19-0.1.20

  • wording in README

0.1.8

  • adding tests in the package so package does not install if tests dont pass

0.1.7

  • oopsies removed needless pictures of the package

0.1.6

  • adding yahii_all_in_one_maker to generate the all in one HTML file with visualization from speed_shoot

0.1.5

  • preparing a new release that generates all in one html static pages

0.1.3

Adding varnish incomplete regexp for log parsing (I miss 2 fields)

0.1.1

  • bad url for the demo

0.1.0

  • it is NEW, seen on TV, and is guaranteed to make you tenfolds more desirable.
